Prometheus源码安装监控kubeenetes集群

| 监控服务 • Prometheus • Kubernetes •
字数总计 28095 | 阅读时长 70分钟 | 阅读量 894

注意：Prometheus-operator 已经改名为 Kube-promethues
系统参数：

  • Prometheus Operator版本： (Prometheus Operator更名为Kube-Prometheus，本文使用版本为：0.8.0 )
  • Kubernetes 版本： 1.20.0

推荐手动下来源码安装，不推荐 helm 方式，因为很多东西需要手动配置进行改动

简介

Kubernetes Operator 介绍

在 Kubernetes 的支持下，管理和伸缩 Web 应用、移动应用后端以及 API 服务都变得比较简单了。其原因是这些应用一般都是无状态的，所以 Deployment 这样的基础Kubernetes API 对象就可以在无需附加操作的情况下，对应用进行伸缩和故障恢复了
而对于数据库、缓存或者监控系统等有状态应用的管理，就是个挑战了。这些系统需要应用领域的知识，来正确的进行伸缩和升级，当数据丢失或不可用的时候，要进行有效的重新配置。我们希望这些应用相关的运维技能可以编码到软件之中，从而借助 Kubernetes 的能力，正确的运行和管理复杂应用
Operator 这种软件，使用 TPR(第三方资源，现在已经升级为 CRD) 机制对 Kubernetes API 进行扩展，将特定应用的知识融入其中，让用户可以创建、配置和管理应用。和 Kubernetes 的内置资源一样，Operator 操作的不是一个单实例应用，而是集群范围内的多实例

Prometheus Operator 介绍

Kubernetes 的 Prometheus Operator 为 Kubernetes 服务和 Prometheus 实例的部署和管理提供了简单的监控定义
安装完毕后，Prometheus Operator提供了以下功能：

  • 创建/毁坏： 在 Kubernetes namespace 中更容易启动一个 Prometheus 实例，一个特定的应用程序或团队更容易使用Operator
  • 简单配置: 配置 Prometheus 的基础东西，比如在 Kubernetes 的本地资源 versions, persistence, retention policies, 和 replicas
  • Target Services 通过标签： 基于常见的Kubernetes label查询，自动生成监控target 配置；不需要学习普罗米修斯特定的配置语言

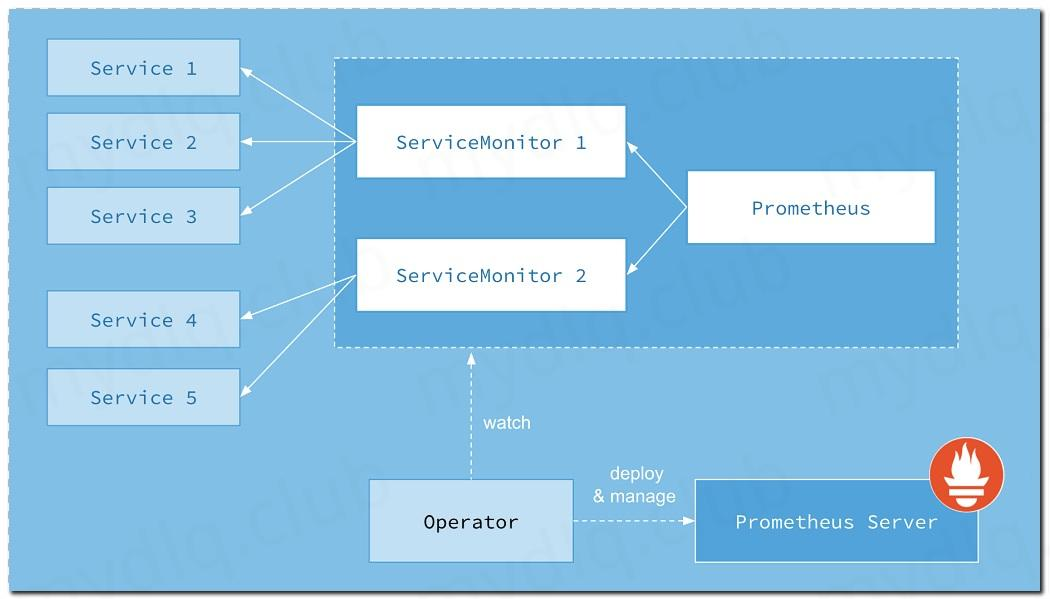

Prometheus Operator 系统架构图


  • Operator： Operator 资源会根据自定义资源（Custom Resource Definition / CRDs）来部署和管理 Prometheus Server，同时监控这些自定义资源事件的变化来做相应的处理，是整个系统的控制中心
  • Prometheus： Prometheus 资源是声明性地描述 Prometheus 部署的期望状态。
  • Prometheus Server： Operator 根据自定义资源 Prometheus 类型中定义的内容而部署的 Prometheus Server 集群，这些自定义资源可以看作是用来管理 Prometheus Server 集群的 StatefulSets 资源
  • ServiceMonitor： ServiceMonitor 也是一个自定义资源，它描述了一组被 Prometheus 监控的 targets 列表。该资源通过 Labels 来选取对应的 - Service Endpoint，让 Prometheus Server 通过选取的 Service 来获取 Metrics 信息
  • Service： Service 资源主要用来对应 Kubernetes 集群中的 Metrics Server Pod，来提供给 ServiceMonitor 选取让 Prometheus Server 来获取信息。简单的说就是 Prometheus 监控的对象，例如 Node Exporter Service、Mysql Exporter Service 等等
  • Alertmanager： Alertmanager 也是一个自定义资源类型，由 Operator 根据资源描述内容来部署 Alertmanager 集群

拉取 Prometheus Operator

先从Github上将源码拉取下来，利用源码项目已经写好的 kubernetes 的 yaml 文件进行一系列集成镜像的安装，如 grafana、prometheus 等等
从 GitHub 拉取 Prometheus Operator 源码

[root@k8s01 deploy]# wget https://github.com/coreos/kube-prometheus/archive/v0.8.0.tar.gz

解压

[root@k8s01 deploy]# tar xf kube-prometheus-0.8.0.tar.gz
[root@k8s01 deploy]# cd kube-prometheus-0.8.0/
[root@k8s01 kube-prometheus-0.8.0]# ls
build.sh            docs             experimental  hack              jsonnetfile.lock.json  Makefile   README.md                          tests
code-of-conduct.md  example.jsonnet  go.mod        jsonnet           kustomization.yaml     manifests  scripts                            test.sh
DCO                 examples         go.sum        jsonnetfile.json  LICENSE                NOTICE     sync-to-internal-registry.jsonnet

进行文件分类

由于它的文件都存放在项目源码的 manifests 文件夹下，所以需要进入其中进行启动这些 kubernetes 应用 yaml 文件。又由于这些文件堆放在一起，不利于分类启动，所以这里将它们分类
进入源码的 manifests 文件夹

[root@k8s01 kube-prometheus-0.8.0]# cd manifests/
[root@k8s01 manifests]#

创建文件夹并且将 yaml 文件分类

# 创建文件夹
[root@k8s01 manifests]# mkdir -p operator node-exporter alertmanager grafana kube-state-metrics prometheus serviceMonitor adapter
# 移动 yaml 文件，进行分类到各个文件夹下
[root@k8s01 manifests]# mv *-serviceMonitor* serviceMonitor/
[root@k8s01 manifests]# mv prometheus-operator* operator/
[root@k8s01 manifests]# mv grafana-* grafana/
[root@k8s01 manifests]# mv kube-state-metrics-* kube-state-metrics/
[root@k8s01 manifests]# mv alertmanager-* alertmanager/
[root@k8s01 manifests]# mv node-exporter-* node-exporter/
[root@k8s01 manifests]# mv prometheus-adapter* adapter/
[root@k8s01 manifests]# mv prometheus-* prometheus/
[root@k8s01 manifests]# mv kube-prometheus-prometheusRule.yaml kubernetes-prometheusRule.yaml prometheus/

基本目录结构如下:

[root@k8s01 manifests]# tree
.
├── adapter
│   ├── prometheus-adapter-apiService.yaml
│   ├── prometheus-adapter-clusterRoleAggregatedMetricsReader.yaml
│   ├── prometheus-adapter-clusterRoleBindingDelegator.yaml
│   ├── prometheus-adapter-clusterRoleBinding.yaml
│   ├── prometheus-adapter-clusterRoleServerResources.yaml
│   ├── prometheus-adapter-clusterRole.yaml
│   ├── prometheus-adapter-configMap.yaml
│   ├── prometheus-adapter-deployment.yaml
│   ├── prometheus-adapter-roleBindingAuthReader.yaml
│   ├── prometheus-adapter-serviceAccount.yaml
│   └── prometheus-adapter-service.yaml
├── alertmanager
│   ├── alertmanager-alertmanager.yaml
│   ├── alertmanager-podDisruptionBudget.yaml
│   ├── alertmanager-prometheusRule.yaml
│   ├── alertmanager-secret.yaml
│   ├── alertmanager-serviceAccount.yaml
│   └── alertmanager-service.yaml
├── blackbox-exporter-clusterRoleBinding.yaml
├── blackbox-exporter-clusterRole.yaml
├── blackbox-exporter-configuration.yaml
├── blackbox-exporter-deployment.yaml
├── blackbox-exporter-serviceAccount.yaml
├── blackbox-exporter-service.yaml
├── grafana
│   ├── grafana-dashboardDatasources.yaml
│   ├── grafana-dashboardDefinitions.yaml
│   ├── grafana-dashboardSources.yaml
│   ├── grafana-deployment.yaml
│   ├── grafana-serviceAccount.yaml
│   └── grafana-service.yaml
├── kube-state-metrics
│   ├── kube-state-metrics-clusterRoleBinding.yaml
│   ├── kube-state-metrics-clusterRole.yaml
│   ├── kube-state-metrics-deployment.yaml
│   ├── kube-state-metrics-prometheusRule.yaml
│   ├── kube-state-metrics-serviceAccount.yaml
│   └── kube-state-metrics-service.yaml
├── node-exporter
│   ├── node-exporter-clusterRoleBinding.yaml
│   ├── node-exporter-clusterRole.yaml
│   ├── node-exporter-daemonset.yaml
│   ├── node-exporter-prometheusRule.yaml
│   ├── node-exporter-serviceAccount.yaml
│   └── node-exporter-service.yaml
├── operator
│   └── prometheus-operator-prometheusRule.yaml
├── prometheus
│   ├── kube-prometheus-prometheusRule.yaml
│   ├── kubernetes-prometheusRule.yaml
│   ├── prometheus-clusterRoleBinding.yaml
│   ├── prometheus-clusterRole.yaml
│   ├── prometheus-podDisruptionBudget.yaml
│   ├── prometheus-prometheusRule.yaml
│   ├── prometheus-prometheus.yaml
│   ├── prometheus-roleBindingConfig.yaml
│   ├── prometheus-roleBindingSpecificNamespaces.yaml
│   ├── prometheus-roleConfig.yaml
│   ├── prometheus-roleSpecificNamespaces.yaml
│   ├── prometheus-serviceAccount.yaml
│   └── prometheus-service.yaml
├── serviceMonitor
│   ├── alertmanager-serviceMonitor.yaml
│   ├── blackbox-exporter-serviceMonitor.yaml
│   ├── grafana-serviceMonitor.yaml
│   ├── kubernetes-serviceMonitorApiserver.yaml
│   ├── kubernetes-serviceMonitorCoreDNS.yaml
│   ├── kubernetes-serviceMonitorKubeControllerManager.yaml
│   ├── kubernetes-serviceMonitorKubelet.yaml
│   ├── kubernetes-serviceMonitorKubeScheduler.yaml
│   ├── kube-state-metrics-serviceMonitor.yaml
│   ├── node-exporter-serviceMonitor.yaml
│   ├── prometheus-adapter-serviceMonitor.yaml
│   ├── prometheus-operator-serviceMonitor.yaml
│   └── prometheus-serviceMonitor.yaml
└── setup
    ├── 0namespace-namespace.yaml
    ├── prometheus-operator-0alertmanagerConfigCustomResourceDefinition.yaml
    ├── prometheus-operator-0alertmanagerCustomResourceDefinition.yaml
    ├── prometheus-operator-0podmonitorCustomResourceDefinition.yaml
    ├── prometheus-operator-0probeCustomResourceDefinition.yaml
    ├── prometheus-operator-0prometheusCustomResourceDefinition.yaml
    ├── prometheus-operator-0prometheusruleCustomResourceDefinition.yaml
    ├── prometheus-operator-0servicemonitorCustomResourceDefinition.yaml
    ├── prometheus-operator-0thanosrulerCustomResourceDefinition.yaml
    ├── prometheus-operator-clusterRoleBinding.yaml
    ├── prometheus-operator-clusterRole.yaml
    ├── prometheus-operator-deployment.yaml
    ├── prometheus-operator-serviceAccount.yaml
    └── prometheus-operator-service.yaml

9 directories, 82 files

修改源码 yaml 文件

由于这些 yaml 文件中设置的应用镜像国内无法拉取下来，所以修改源码中的这些 yaml 的镜像设置，替换镜像地址方便拉取安装。再之后因为需要将 Grafana & Prometheus & Alertmanager 通过 NodePort 方式暴露出去，所以也需要修改这两个应用的 service 文件
镜像修改本文省略

修改 Service 端口设置

修改 Prometheus Service

修改 prometheus-service.yaml 文件

[root@k8s01 manifests]# vim prometheus/prometheus-service.yaml
#修改prometheus Service端口类型为NodePort，设置nodePort端口为30089
apiVersion: v1
kind: Service
metadata:
  labels:
    prometheus: k8s
  name: prometheus-k8s
  namespace: monitoring
spec:
  type: NodePort
  ports:
  - name: web
    port: 9090
    targetPort: web
    nodePort: 30089
  selector:
    app: prometheus
    prometheus: k8s
  sessionAffinity: ClientIP

修改 Grafana Service

修改 grafana-service.yaml 文件

[root@k8s01 manifests]# vim grafana/grafana-service.yaml
#修改garafana Service端口类型为NodePort，设置nodePort端口为30088
apiVersion: v1
kind: Service
metadata:
  labels:
    app: grafana
  name: grafana
  namespace: monitoring
spec:
  type: NodePort
  ports:
  - name: http
    port: 3000
    targetPort: http
    nodePort: 30088
  selector:
    app: grafana

修改 Alertmanager Service

修改 alertmanager-service.yaml 文件

[root@k8s01 manifests]# vim alertmanager/alertmanager-service.yaml
#修改Alertmanager Service端口类型为NodePort，设置nodePort端口为30093
apiVersion: v1
kind: Service
metadata:
  labels:
    alertmanager: main
  name: alertmanager-main
  namespace: monitoring
spec:
  type: NodePort
  ports:
  - name: web
    port: 9093
    targetPort: web
    nodePort: 30093
  selector:
    alertmanager: main
    app: alertmanager
  sessionAffinity: ClientIP

修改数据持久化存储

prometheus 实际上是通过 emptyDir 进行挂载的，我们知道 emptyDir 挂载的数据的生命周期和 Pod 生命周期一致的，如果 Pod 挂掉了，那么数据也就丢失了，这也就是为什么我们重建 Pod 后之前的数据就没有了的原因，所以这里修改它的持久化配置

修改 Prometheus 持久化

修改 prometheus-prometheus.yaml 文件

[root@k8s01 manifests]# vim prometheus/prometheus-prometheus.yaml
apiVersion: monitoring.coreos.com/v1
kind: Prometheus
metadata:
  labels:
    app.kubernetes.io/component: prometheus
    app.kubernetes.io/name: prometheus
    app.kubernetes.io/part-of: kube-prometheus
    app.kubernetes.io/version: 2.26.0
    prometheus: k8s
  name: k8s
  namespace: monitoring
spec:
  alerting:
    alertmanagers:
    - apiVersion: v2
      name: alertmanager-main
      namespace: monitoring
      port: web
  externalLabels: {}
  image: quay.io/prometheus/prometheus:v2.26.0
  nodeSelector:
    kubernetes.io/os: linux
  podMetadata:
    labels:
      app.kubernetes.io/component: prometheus
      app.kubernetes.io/name: prometheus
      app.kubernetes.io/part-of: kube-prometheus
      app.kubernetes.io/version: 2.26.0
  podMonitorNamespaceSelector: {}
  podMonitorSelector: {}
  probeNamespaceSelector: {}
  probeSelector: {}
  replicas: 2
  resources:
    requests:
      memory: 400Mi
  ruleSelector:
    matchLabels:
      prometheus: k8s
      role: alert-rules
  securityContext:
    fsGroup: 2000
    runAsNonRoot: true
    runAsUser: 1000
  serviceAccountName: prometheus-k8s
  serviceMonitorNamespaceSelector: {}
  serviceMonitorSelector: {}
  version: 2.26.0
  storage:                  #----添加持久化配置，指定StorageClass
    volumeClaimTemplate:
      spec:
        storageClassName: managed-nfs-storage
        resources:
          requests:
            storage: 50Gi

修改 Grafana 持久化配置

创建 grafana-pvc.yaml 文件
由于 Grafana 是部署模式为 Deployment，所以我们提前为其创建一个 grafana-pvc.yaml 文件，加入下面 PVC 配置

[root@k8s01 manifests]# vim grafana/grafana-pvc.yaml
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
  name: grafana
  namespace: monitoring  #---指定namespace为monitoring
spec:
  storageClassName: managed-nfs-storage #---指定StorageClass
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 10Gi

修改 grafana-deployment.yaml 文件设置持久化配置，应用上面的 PVC

[root@k8s01 manifests]# vim grafana/grafana-deployment.yaml
#将 volumes 里面的 “grafana-storage” 配置注掉，新增如下配置，挂载一个名为 grafana 的 PVC
......
      volumes:
      - name: grafana-storage       #-------新增持久化配置
        persistentVolumeClaim:
          claimName: grafana        #-------设置为创建的PVC名称
      #- emptyDir: {}               #-------注释掉旧的配置
      #  name: grafana-storage
      - name: grafana-datasources
        secret:
          secretName: grafana-datasources
      - configMap:
          name: grafana-dashboards
        name: grafana-dashboards
......

修改kube-state-metrics

修改镜像，不然会拉取失败

[root@k8s01 manifests]# vim kube-state-metrics/kube-state-metrics-deployment.yaml
...
        - --telemetry-host=127.0.0.1
        - --telemetry-port=8082
#        image: k8s.gcr.io/kube-state-metrics/kube-state-metrics:2.0.0
        image: bitnami/kube-state-metrics:2.0.0
        name: kube-state-metrics
...

更改 kubernetes配置与创建对应 Service

必须提前设置一些Kubernetes中的配置，否则kube-scheduler和kube-controller-manager无法监控到数据

修改 kube-scheduler 配置

编辑 /etc/kubernetes/manifests/kube-scheduler.yaml 文件

[root@k8s01 ~]# vim /etc/kubernetes/manifests/kube-scheduler.yaml
#将 command 的 bind-address 地址更改成 0.0.0.0
......
spec:
  containers:
  - command:
    - kube-scheduler
    - --bind-address=0.0.0.0  #改为0.0.0.0
    - --kubeconfig=/etc/kubernetes/scheduler.conf
    - --leader-elect=true
......

修改 kube-controller-manager 配置

编辑 /etc/kubernetes/manifests/kube-controller-manager.yaml 文件

[root@k8s01 ~]# vim /etc/kubernetes/manifests/kube-controller-manager.yaml
#将 command 的 bind-address 地址更改成 0.0.0.0
spec:
  containers:
  - command:
    - kube-controller-manager
    - --allocate-node-cidrs=true
    - --authentication-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --authorization-kubeconfig=/etc/kubernetes/controller-manager.conf
    - --bind-address=0.0.0.0  #改为0.0.0.0
......

修改kube-controller和kube-scheduler的serviceMonitor

[root@k8s01 manifests]# vim serviceMonitor/kubernetes-serviceMonitorKubeScheduler.yaml
...
    scheme: https
    tlsConfig:
      insecureSkipVerify: true
#  jobLabel: app.kubernetes.io/name
  jobLabel: k8s-app
  namespaceSelector:
    matchNames:
    - kube-system
  selector:
    matchLabels:
#      app.kubernetes.io/name: kube-scheduler
      k8s-app: kube-scheduler
...

[root@k8s01 manifests]# vim serviceMonitor/kubernetes-serviceMonitorKubeControllerManager.yaml
...
    scheme: https
    tlsConfig:
      insecureSkipVerify: true
#  jobLabel: app.kubernetes.io/name
  jobLabel: k8s-app
  namespaceSelector:
    matchNames:
    - kube-system
  selector:
    matchLabels:
#      app.kubernetes.io/name: kube-controller-manager
      k8s-app: kube-controller-manager

创建kube-scheduler & controller-manager对应Service

因为 Prometheus Operator 配置监控对象 serviceMonitor 是根据 label 选取 Service 来进行监控关联的，而通过 Kuberadm 安装的 Kubernetes 集群只创建了 kube-scheduler & controller-manager 的 Pod 并没有创建 Service，所以 Prometheus Operator 无法这两个组件信息，这里我们收到创建一下这俩个组件的 Service

apiVersion: v1
kind: Service
metadata:
  namespace: kube-system
  name: kube-controller-manager
  labels:
    k8s-app: kube-controller-manager
spec:
  selector:
    component: kube-controller-manager
  type: ClusterIP
  clusterIP: None
  ports:
  - name: http-metrics
    port: 10257
    targetPort: 10257
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  namespace: kube-system
  name: kube-scheduler
  labels:
    k8s-app: kube-scheduler
spec:
  selector:
    component: kube-scheduler
  type: ClusterIP
  clusterIP: None
  ports:
  - name: http-metrics
    port: 10259
    targetPort: 10259
    protocol: TCP

[root@k8s01 manifests]# kubectl apply -f kube-scheduler-controller.yaml
service/kube-controller-manager created
service/kube-scheduler created
[root@k8s01 manifests]# kubectl get -n kube-system svc
NAME                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                  AGE
kube-controller-manager   ClusterIP   None            <none>        10252/TCP                3s
kube-dns                  ClusterIP   10.96.0.10      <none>        53/UDP,53/TCP,9153/TCP   41d
kube-scheduler            ClusterIP   None            <none>        10251/TCP                3s
metrics-server            ClusterIP   10.96.227.107   <none>        443/TCP                  41d

如果是二进制部署还得创建对应的Endpoints对象将两个组件挂入到kubernetes集群内，然后通过 Service提供访问，才能让Prometheus 监控到

安装Prometheus Operator

所有文件都在 manifests 目录下执行

创建namespace及crd

[root@k8s01 manifests]# kubectl apply -f setup/

安装 Operator

[root@k8s01 manifests]# kubectl apply -f operator/

查看 Pod，等 pod 创建起来在进行下一步

[root@k8s01 manifests]# kubectl get -n monitoring po
NAME                                   READY   STATUS    RESTARTS   AGE
prometheus-operator-7775c66ccf-nctwk   2/2     Running   0          74s

安装其它组件

[root@k8s01 manifests]# kubectl apply -f adapter/
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io configured
clusterrole.rbac.authorization.k8s.io/prometheus-adapter created
clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader configured
clusterrolebinding.rbac.authorization.k8s.io/prometheus-adapter created
clusterrolebinding.rbac.authorization.k8s.io/resource-metrics:system:auth-delegator created
clusterrole.rbac.authorization.k8s.io/resource-metrics-server-resources created
configmap/adapter-config created
deployment.apps/prometheus-adapter created
rolebinding.rbac.authorization.k8s.io/resource-metrics-auth-reader created
service/prometheus-adapter created
serviceaccount/prometheus-adapter created

[root@k8s01 manifests]# kubectl apply -f alertmanager/
alertmanager.monitoring.coreos.com/main created
poddisruptionbudget.policy/alertmanager-main created
prometheusrule.monitoring.coreos.com/alertmanager-main-rules created
secret/alertmanager-main created
service/alertmanager-main created
serviceaccount/alertmanager-main created
[root@k8s01 manifests]# kubectl apply -f node-exporter/
clusterrole.rbac.authorization.k8s.io/node-exporter created
clusterrolebinding.rbac.authorization.k8s.io/node-exporter created
daemonset.apps/node-exporter created
prometheusrule.monitoring.coreos.com/node-exporter-rules created
service/node-exporter created
serviceaccount/node-exporter created

[root@k8s01 manifests]# kubectl apply -f kube-state-metrics/
clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
deployment.apps/kube-state-metrics created
prometheusrule.monitoring.coreos.com/kube-state-metrics-rules created
service/kube-state-metrics created
serviceaccount/kube-state-metrics created

[root@k8s01 manifests]# kubectl apply -f grafana/
secret/grafana-datasources created
configmap/grafana-dashboard-apiserver created
configmap/grafana-dashboard-cluster-total created
configmap/grafana-dashboard-controller-manager created
configmap/grafana-dashboard-k8s-resources-cluster created
configmap/grafana-dashboard-k8s-resources-namespace created
configmap/grafana-dashboard-k8s-resources-node created
configmap/grafana-dashboard-k8s-resources-pod created
configmap/grafana-dashboard-k8s-resources-workload created
configmap/grafana-dashboard-k8s-resources-workloads-namespace created
configmap/grafana-dashboard-kubelet created
configmap/grafana-dashboard-namespace-by-pod created
configmap/grafana-dashboard-namespace-by-workload created
configmap/grafana-dashboard-node-cluster-rsrc-use created
configmap/grafana-dashboard-node-rsrc-use created
configmap/grafana-dashboard-nodes created
configmap/grafana-dashboard-persistentvolumesusage created
configmap/grafana-dashboard-pod-total created
configmap/grafana-dashboard-prometheus-remote-write created
configmap/grafana-dashboard-prometheus created
configmap/grafana-dashboard-proxy created
configmap/grafana-dashboard-scheduler created
configmap/grafana-dashboard-statefulset created
configmap/grafana-dashboard-workload-total created
configmap/grafana-dashboards created
deployment.apps/grafana created
persistentvolumeclaim/grafana created
service/grafana created
serviceaccount/grafana created

[root@k8s01 manifests]# kubectl apply -f prometheus/
prometheusrule.monitoring.coreos.com/kube-prometheus-rules created
prometheusrule.monitoring.coreos.com/kubernetes-monitoring-rules created
clusterrole.rbac.authorization.k8s.io/prometheus-k8s created
clusterrolebinding.rbac.authorization.k8s.io/prometheus-k8s created
poddisruptionbudget.policy/prometheus-k8s created
prometheus.monitoring.coreos.com/k8s created
prometheusrule.monitoring.coreos.com/prometheus-k8s-prometheus-rules created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s-config created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s-config created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
role.rbac.authorization.k8s.io/prometheus-k8s created
service/prometheus-k8s created
serviceaccount/prometheus-k8s created

[root@k8s01 manifests]# kubectl apply -f serviceMonitor/
servicemonitor.monitoring.coreos.com/alertmanager created
servicemonitor.monitoring.coreos.com/blackbox-exporter created
servicemonitor.monitoring.coreos.com/grafana created
servicemonitor.monitoring.coreos.com/kube-state-metrics created
servicemonitor.monitoring.coreos.com/kube-apiserver created
servicemonitor.monitoring.coreos.com/coredns created
servicemonitor.monitoring.coreos.com/kube-controller-manager created
servicemonitor.monitoring.coreos.com/kube-scheduler created
servicemonitor.monitoring.coreos.com/kubelet created
servicemonitor.monitoring.coreos.com/node-exporter created
servicemonitor.monitoring.coreos.com/prometheus-adapter created
servicemonitor.monitoring.coreos.com/prometheus-operator created
servicemonitor.monitoring.coreos.com/prometheus-k8s created

查看 Pod 状态

[root@k8s01 manifests]# kubectl get -n monitoring po
NAME                                   READY   STATUS    RESTARTS   AGE
alertmanager-main-0                    2/2     Running   0          8m56s
alertmanager-main-1                    2/2     Running   0          8m56s
alertmanager-main-2                    2/2     Running   0          8m56s
grafana-747dd6fc85-khqx6               1/1     Running   0          8m15s
kube-state-metrics-6cb48468f8-z8b75    3/3     Running   0          2m48s
node-exporter-5xgww                    2/2     Running   0          8m33s
node-exporter-q78qs                    2/2     Running   0          8m33s
node-exporter-s7lf4                    2/2     Running   0          8m33s
prometheus-adapter-59df95d9f5-srtb5    1/1     Running   0          9m8s
prometheus-adapter-59df95d9f5-ttwz8    1/1     Running   0          9m8s
prometheus-k8s-0                       2/2     Running   1          7m46s
prometheus-k8s-1                       2/2     Running   1          7m46s
prometheus-operator-7775c66ccf-nctwk   2/2     Running   0          11m

问题排错

上述部署过程中如遇到如下报错，可参考:https://github.com/helm/charts/issues/19928

manifest_sorter.go:175: info: skipping unknown hook: "crd-install"
manifest_sorter.go:175: info: skipping unknown hook: "crd-install"
manifest_sorter.go:175: info: skipping unknown hook: "crd-install"
manifest_sorter.go:175: info: skipping unknown hook: "crd-install"
manifest_sorter.go:175: info: skipping unknown hook: "crd-install"
Error: Internal error occurred: failed calling webhook "prometheusrulemutate.monitoring.coreos.com": Post https://prometheus-operator-operator.monitoring.svc:443/admission-prometheusrules/mutate?timeout=30s: no service port 'ƻ' found for service "prometheus-operator-operator"

#需要删除validatingwebhookconfigurations.admissionregistration.k8s.io和MutatingWebhookConfiguration
[root@k8s01 manifests]# kubectl get validatingwebhookconfigurations.admissionregistration.k8s.io
#删除所列出的所有
[root@k8s01 manifests]# kubectl get MutatingWebhookConfiguration
#删除所列出的所有

查看 Prometheus & Grafana

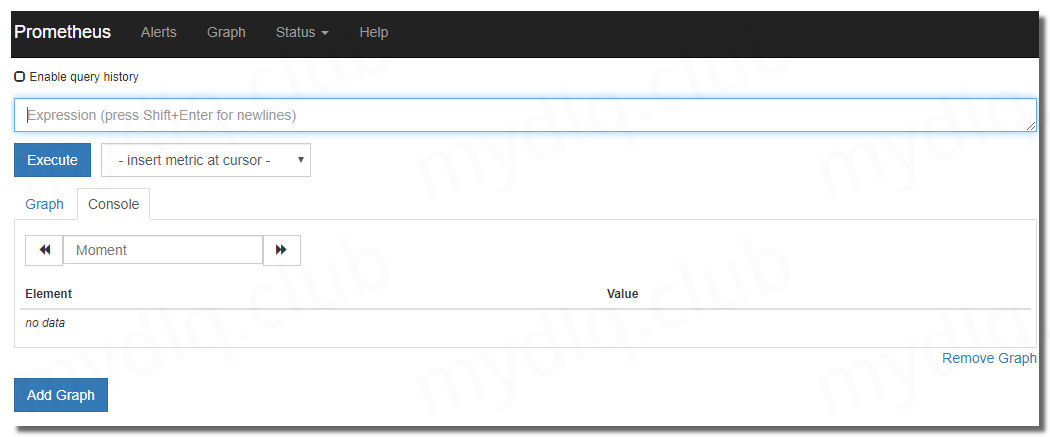

查看 Prometheus

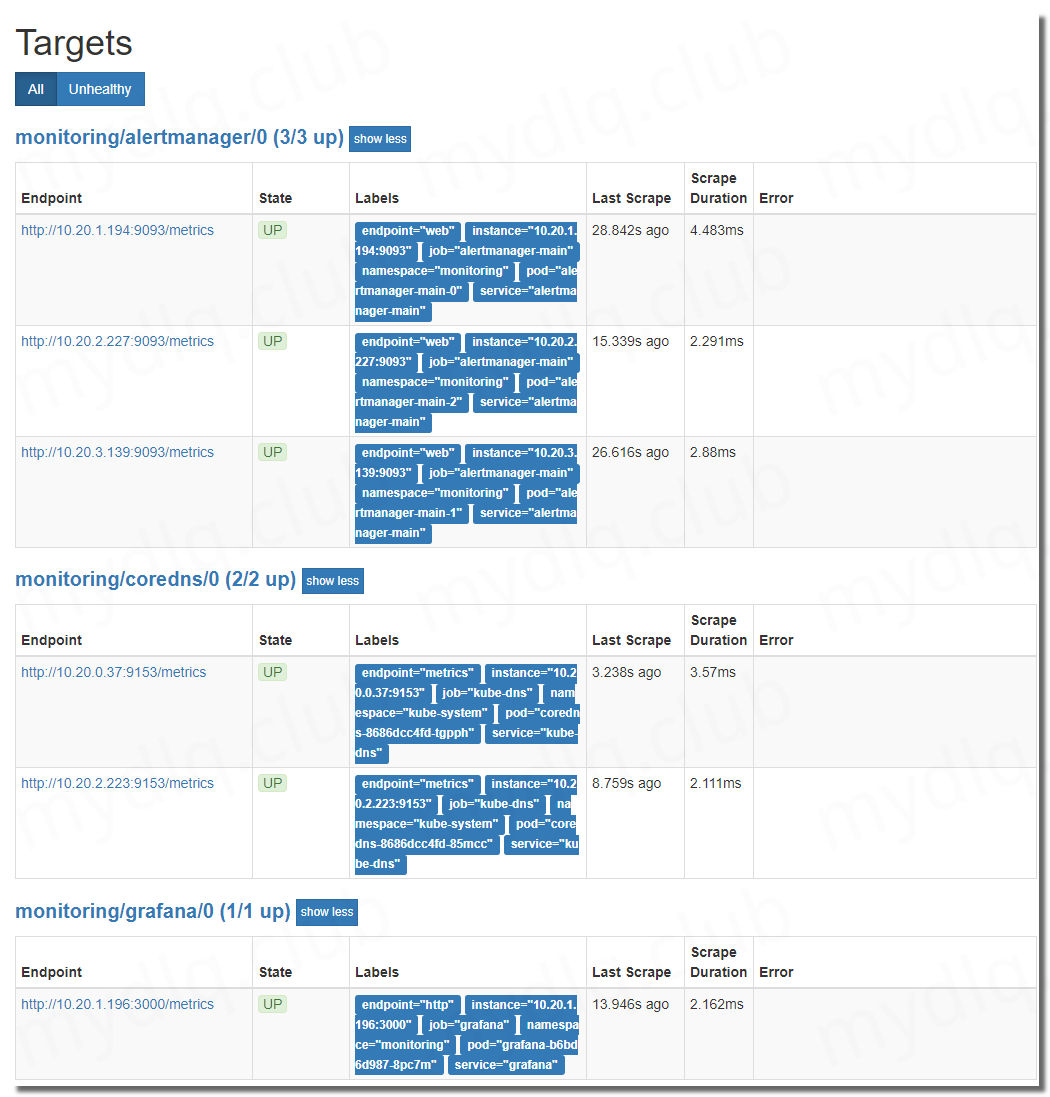

打开地址： http://NodeIP:30089 查看 Prometheus 采集的目标，看其各个采集服务状态有木有错误

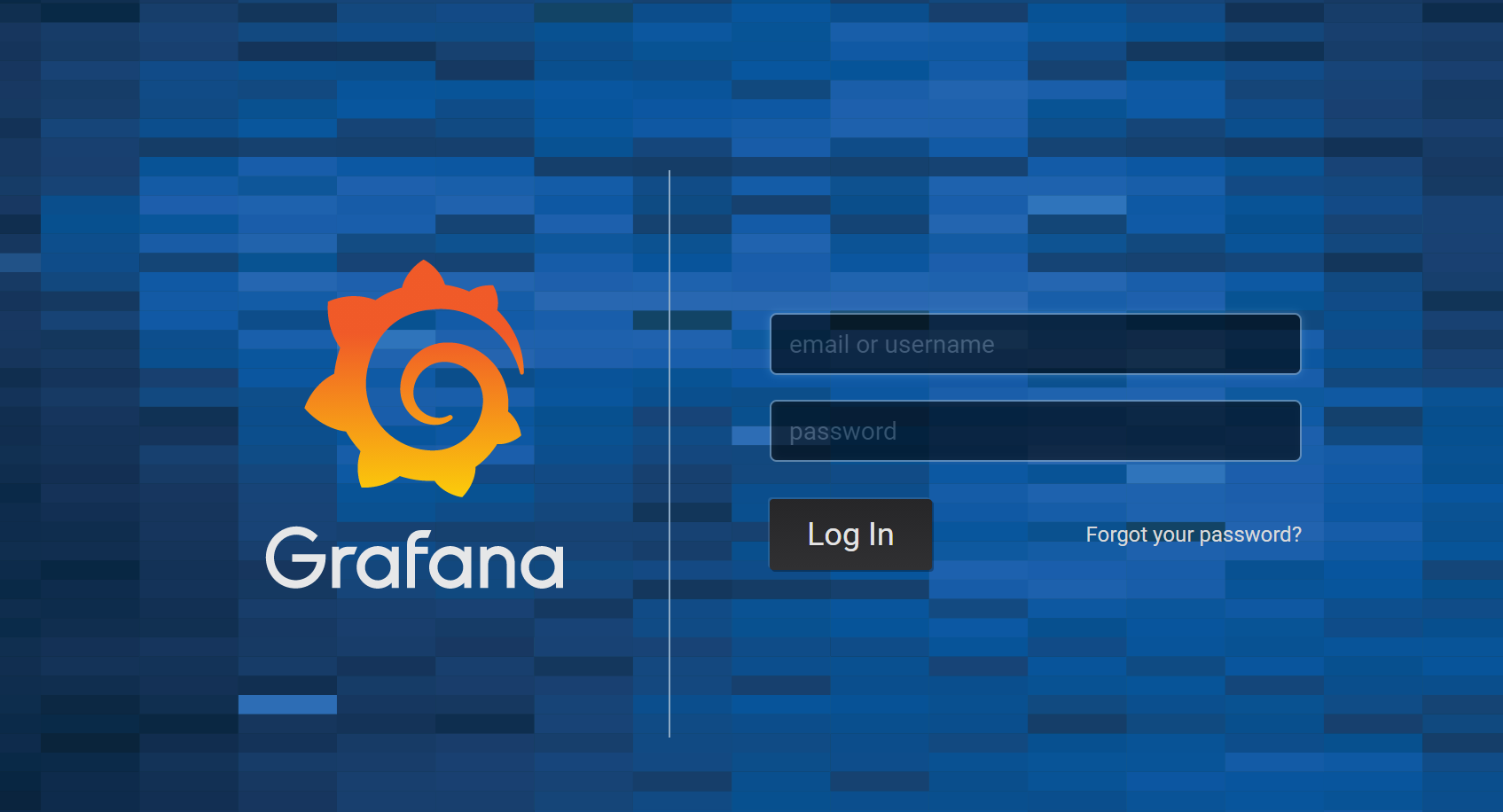

查看 Grafana

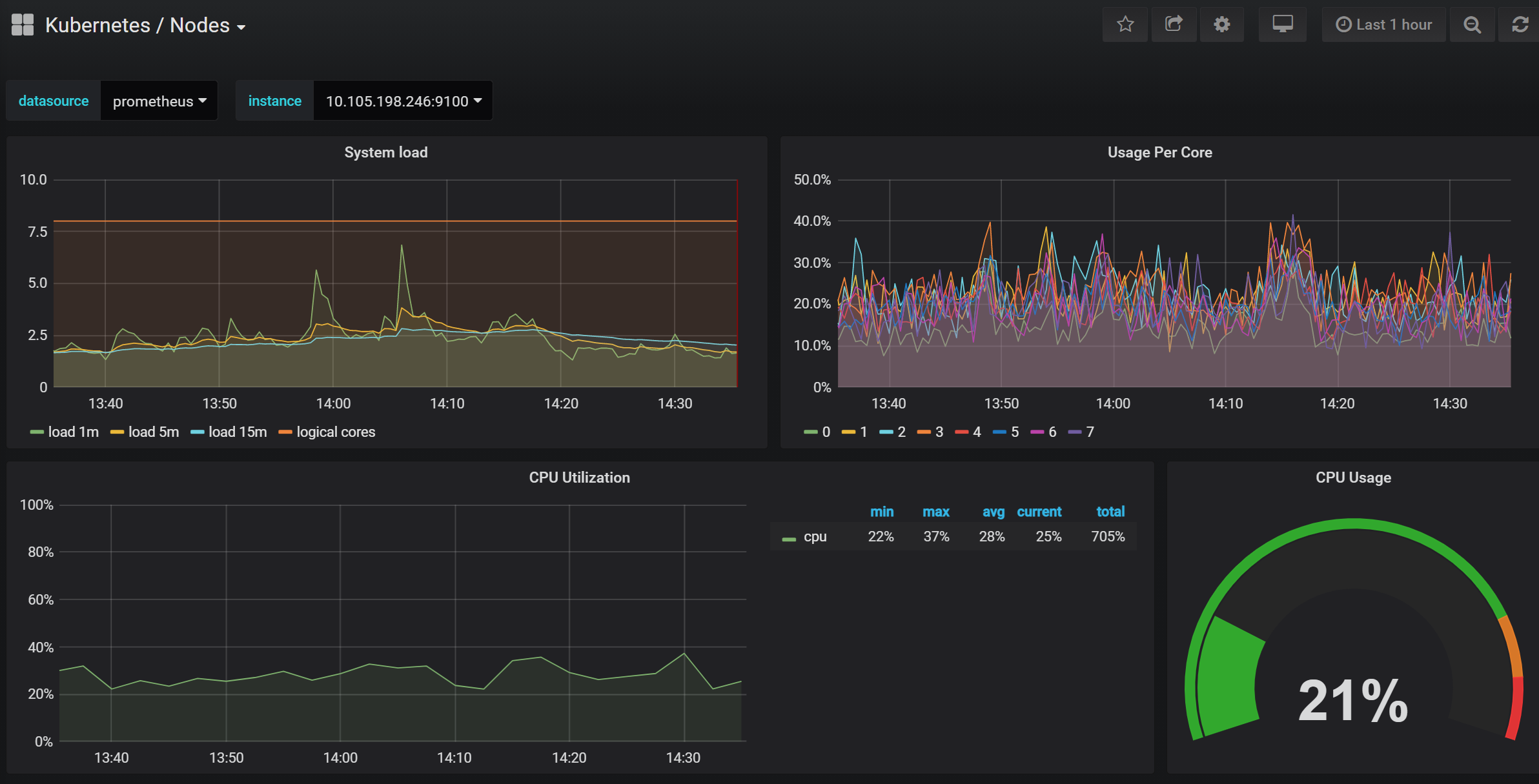

打开地址： http://NodeIP:30088 查看 Grafana 图表，看其 Kubernetes 集群是否能正常显示

  • 默认用户名：admin
  • 默认密码：admin



文章作者： 鲜花的主人
本文链接：
版权声明： 本站所有文章除特别声明外，均采用 CC BY-NC-SA 4.0 许可协议。转载请注明来自 爱吃可爱多！
监控服务 Prometheus Kubernetes Kubernetes 监控服务 Prometheus
喜欢就支持一下吧
打赏
微信 微信
支付宝 支付宝
